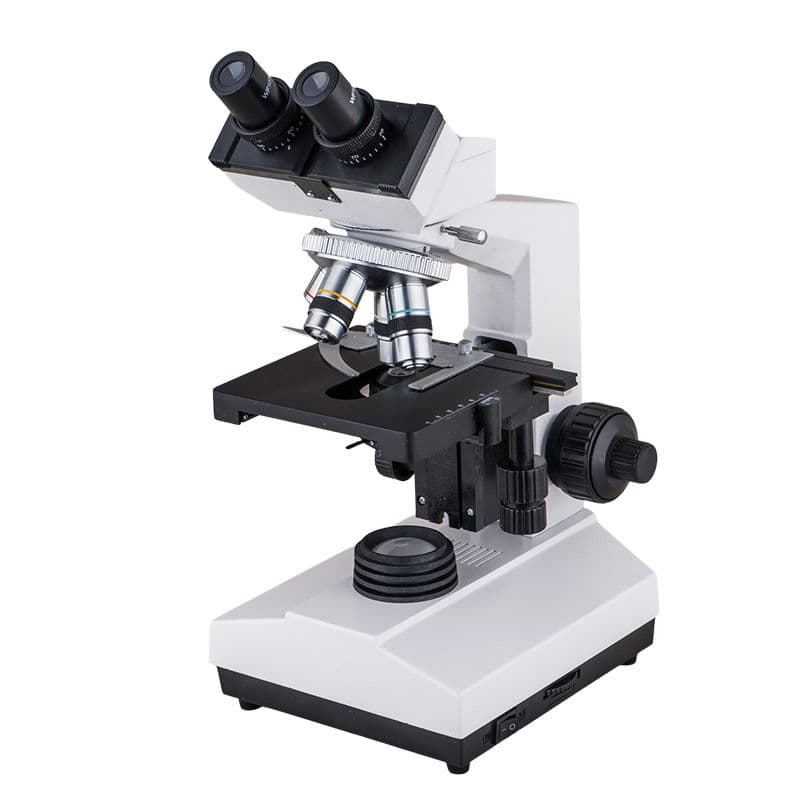

XSZ-107 Biological Laboratory Microscope

Product Overview

The XSZ-107 Biological Microscope is a compound optical microscope designed for laboratory examinations, biological specimen observation, teaching demonstrations and practical training. With multiple objective lenses, adjustable focusing controls and a mechanical stage, it supports detailed examination of prepared slides in educational and laboratory environments.

The XSZ-107 series is available in different viewing-head configurations, including monocular, binocular and trinocular versions, depending on the model. It is suitable for schools, colleges, universities, research facilities and medical laboratories requiring a versatile microscope for routine microscopy.

toolots.com

+1

Key Features

• Multiple magnification options: Objective lenses support different levels of specimen observation.

• Achromatic objective lenses: Designed to provide clear images for routine microscopy.

• Mechanical specimen stage: Enables controlled horizontal and vertical slide movement.

• Coaxial coarse and fine focusing: Supports initial focusing and more precise image adjustment.

• Abbe condenser: Helps direct light through the specimen for improved viewing.

• Adjustable illumination: Brightness can be adjusted on configurations equipped with the specified illumination system.

• Flexible viewing configurations: Monocular, binocular or trinocular options are available across the XSZ-107 series.

Technical Specifications

Specification

Details

Model

XSZ-107 series

Microscope type

Compound biological microscope

Eyepiece

WF10× standard; WF16× may be optional

Objective lenses

4×, 10×, 40× spring-loaded, 100× spring-loaded oil immersion

Total magnification

40×–1000× with a 10× eyepiece

Viewing head

Depends on configuration

Nosepiece

Quadruple revolving nosepiece

Stage

Double-layer mechanical stage

Stage size

Approximately 140 × 140 mm, depending on version

Stage movement

Approximately 75 × 45 mm, depending on version

Focusing

Coaxial coarse and fine adjustment

Condenser

Abbe condenser, NA 1.25, with iris diaphragm and filter

Illumination

6 V, 20 W halogen on standard configurations; LED may be available on selected versions

Intended applications

Education, biological observation, routine microscopy and laboratory training

Specifications vary across XSZ-107 variants and manufacturers. Confirm the exact viewing head, illumination, stage dimensions and included accessories before purchase.

Applications

The XSZ-107 microscope can be used for:

• School and university biology practicals.

• Laboratory teaching and specimen demonstrations.

• Biological and microbiological specimen observation.

• Routine microscopy in appropriately equipped laboratories.

• Research and educational laboratory activities.

For clinical diagnostic applications, confirm that the supplied configuration meets the requirements of the intended tests and laboratory quality procedures.
