XSZ-107 Microscope
Ksh 26,000.00
Nationwide Delivery Across KenyaFree Shipping Over Ksh 500,000.00
Reliable Olympus microscope for clinical, educational and research laboratories.

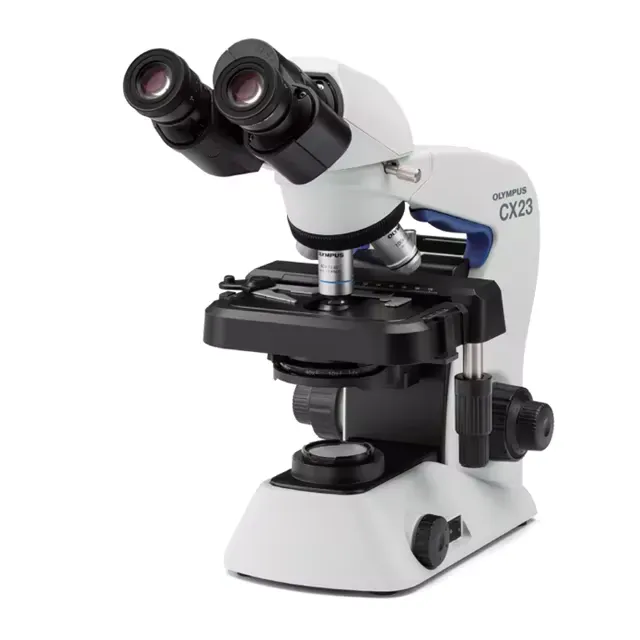

The Olympus CX23 Laboratory Microscope is a compound optical microscope designed for routine laboratory work, practical training and educational applications. It provides clear magnified images of prepared specimens, making it suitable for medical training institutions, colleges, universities and laboratories that require a dependable instrument for everyday microscopy.
Designed with usability and routine observation in mind, the CX23 supports examination of prepared slides across a range of laboratory applications. Its suitability for diagnostic work depends on the laboratory's procedures, required specifications and applicable quality standards.
Infinity optical system: Designed to deliver clear images for routine specimen observation.

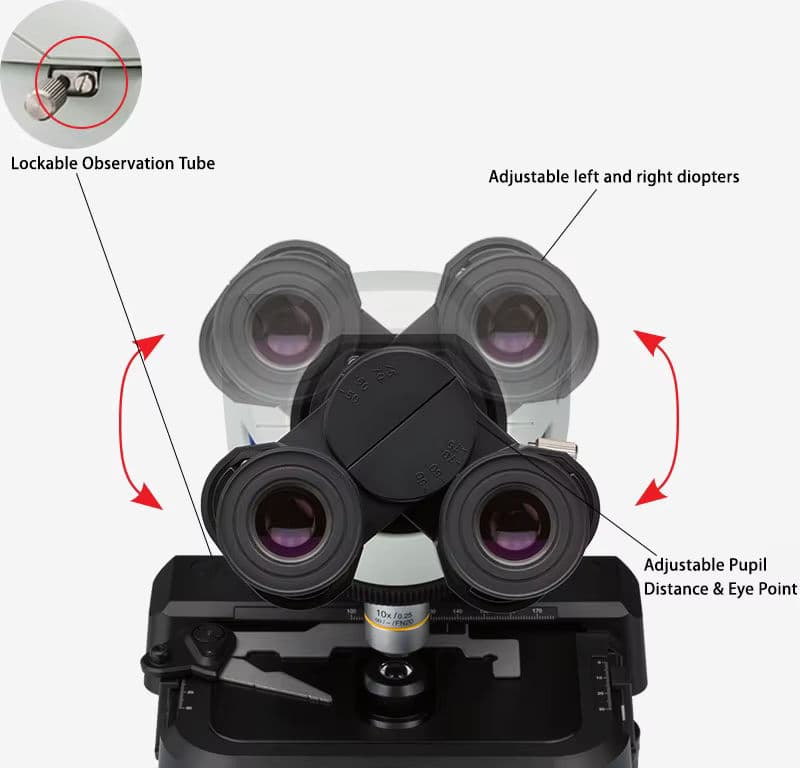

Binocular viewing head: Two eyepieces provide comfortable viewing during extended laboratory sessions.
Plan achromat objectives: Supports clear observation across different magnification levels.
LED illumination: Provides efficient, low-power lighting for everyday use.
Mechanical stage: Allows controlled movement of slides to examine different areas of a specimen.
Coaxial coarse and fine focusing: Helps users locate specimens and refine image focus.
Abbe condenser: Helps direct and control illumination for specimen viewing.
Durable construction: Features a metal frame with protective covering for routine laboratory use.
+1
Specification
Details
Brand
Olympus
Model
CX23
Microscope type
Compound biological microscope
Optical system
Infinity-corrected optical system
Viewing head
Binocular, 30° inclined
Eyepieces
10×, field number 20
Objective lenses
4×, 10×, 40× and 100× oil immersion, depending on model configuration
Maximum magnification
Up to 1000× with 10× eyepieces and 100× objective
Nosepiece
Quadruple revolving nosepiece
Stage
Mechanical fixed stage
Stage travel
76 mm × 30 mm
Condenser
Abbe condenser, NA 1.25
Illumination
Built-in transmitted LED
Focusing
Coarse and fine focus
Power supply
AC 100–240 V, 50/60 Hz

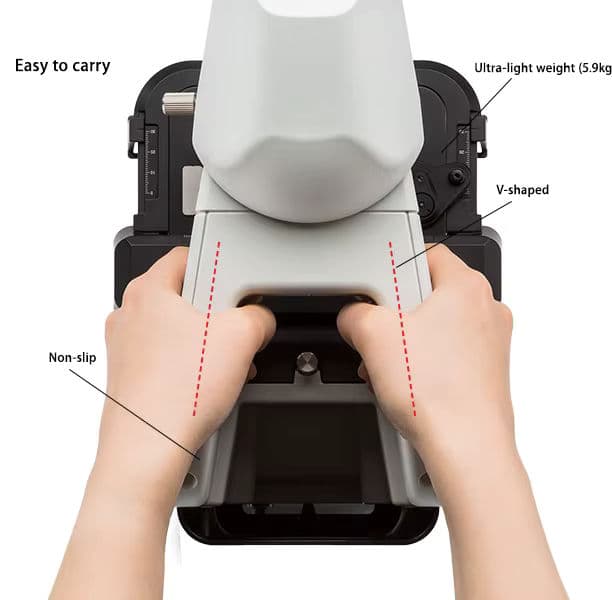

Approximate weight
5.9 kg for the binocular version
Specifications may vary by CX23 configuration. Confirm the exact model and included objectives before ordering.
+1
The Olympus CX23 microscope is suitable for:
Medical laboratory training and practical demonstrations.
School, college and university biology laboratories.
Routine examination of prepared slides.
General biological and microbiological specimen observation.
Laboratories requiring a binocular microscope for everyday work.
For clinical diagnostic use, ensure the microscope configuration is appropriate for the laboratory's specific testing procedures and quality requirements.
Zanmed Medical Supplies Ltd supplies laboratory equipment and medical supplies for healthcare facilities, educational institutions and laboratory professionals in Kenya. When purchasing the Olympus CX23, confirm the supplied configuration, accessories, warranty, delivery arrangements and after-sales support.
Does the Olympus CX23 support 1000× magnification?
Yes. A configuration with a 10× eyepiece and 100× oil-immersion objective provides 1000× total magnification.
Does it use LED lighting?
Yes. The CX23 features built-in transmitted LED illumination.
Is it suitable for medical laboratories?
It can support routine laboratory microscopy, provided its specifications meet the laboratory's intended procedures and requirements.
Can it be used in schools and universities?
Yes. Its binocular viewing system, mechanical stage and multiple objective lenses make it suitable for educational microscopy.
